In modern plastic processing and manufacturing industries, the extruder die head plays a critical role in determining product quality, production efficiency, and material performance. Whether you are producing films, pipes, profiles, or cable coatings, selecting the right die head extrusion system directly impacts output consistency and cost efficiency.
This guide is designed for engineers, procurement teams, and decision-makers working with extrusion systems and extrusion companies such as Bojing. It explains what an extruder die head is, how to choose one, its types, and key selection criteria—helping you make informed, industry-grade decisions.

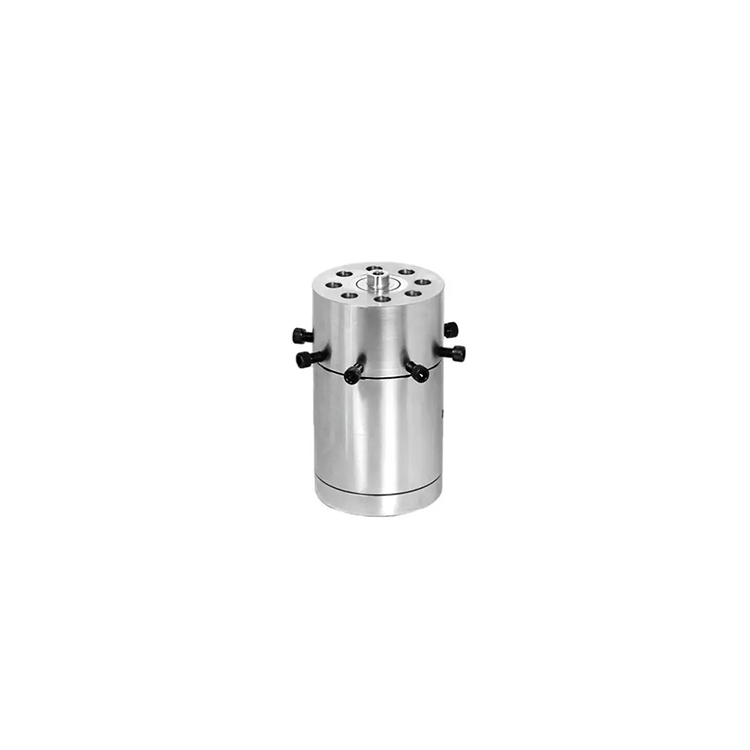

An extruder die head is a key component in the extrusion process that shapes molten plastic into a continuous profile. After raw polymer material is melted in the extruder barrel, it is pushed through the die head to form specific shapes such as sheets, tubes, films, or coatings.
In simple terms, the die head is the “forming stage” of extrusion, where material transitions from molten state into a structured product.
Key functions include:
Shaping molten polymer into desired geometry
Ensuring uniform flow distribution
Controlling thickness and dimensional accuracy
Supporting multi-layer or coated structures in advanced applications
Based on industrial applications and the product reference from Bojing, the main types of extruder die heads include:
| Type | Description | Typical Applications |
|---|---|---|
| Flat Die Extruder | Produces flat sheets or films | Packaging, insulation, roofing materials |
| Round Die Extruder | Produces tubular or round profiles | Pipes, tubes, rods |
| Multi-Manifold Die Extruder | Produces multiple profiles simultaneously | Window frames, door frames, fencing |
| Coextrusion Die Extruder | Combines multiple material layers | Barrier films, laminated materials, multi-layer pipes |
| Wire Coating Die Extruder | Coats wires with plastic insulation | Electrical cables, coaxial cables, fiber optics |
These configurations are widely used in modern die head extrusion systems depending on product complexity and industrial requirements.
Choosing a die head requires evaluating multiple technical and production factors. Below is a structured approach used by leading extrusion companies such as Bojing.
Film (flat or blown)
Pipe or tube
Multi-layer composite
Cable coating
Industrial profiles
Different polymers behave differently under heat and pressure, affecting flow distribution.
High-speed production lines require streamlined flow channels
Precision products require fine-tuned die lips
Single-layer vs multi-layer extrusion
Barrier or functional layers
Easy disassembly designs reduce downtime.
Selecting the correct die head extrusion system is not just a technical decision—it directly affects production profitability and product competitiveness.
Product quality stability: Poor die head design leads to uneven thickness and defects
Material efficiency: Optimized flow reduces waste and energy consumption
Production speed: High-performance die heads improve output rate
Compatibility: Different polymers require different flow channel designs
Maintenance cost: Better design reduces downtime and cleaning frequency
In short, choosing the right die head ensures your extrusion line operates efficiently and consistently.
Extrusion die heads are commonly made from alloy steel, stainless steel, and tool steel, often with chrome-plated surfaces to improve durability and reduce material sticking during processing.
Industries include packaging, construction, automotive, electrical, medical tubing, and agricultural film production.
Regular cleaning, proper temperature control, and scheduled inspection of flow channels help extend die head lifespan and maintain production quality.
Choosing the right extruder die head is essential for achieving stable, high-quality, and efficient extrusion production. From understanding die head types to evaluating material compatibility and design precision, every detail impacts your final output.
Manufacturers and extrusion companies such as Bojin provide advanced solutions tailored to different industrial needs, helping businesses improve productivity and reduce operational costs.
By applying the selection framework in this guide, you can confidently choose the right die head extrusion system for your application and ensure long-term manufacturing success.
